Accusize Industrial Tools 6-Piece Adjustable Precision Parallel Set, 3602-5001 - Ideal for Machining, Metalworking, and Woodworking Projects

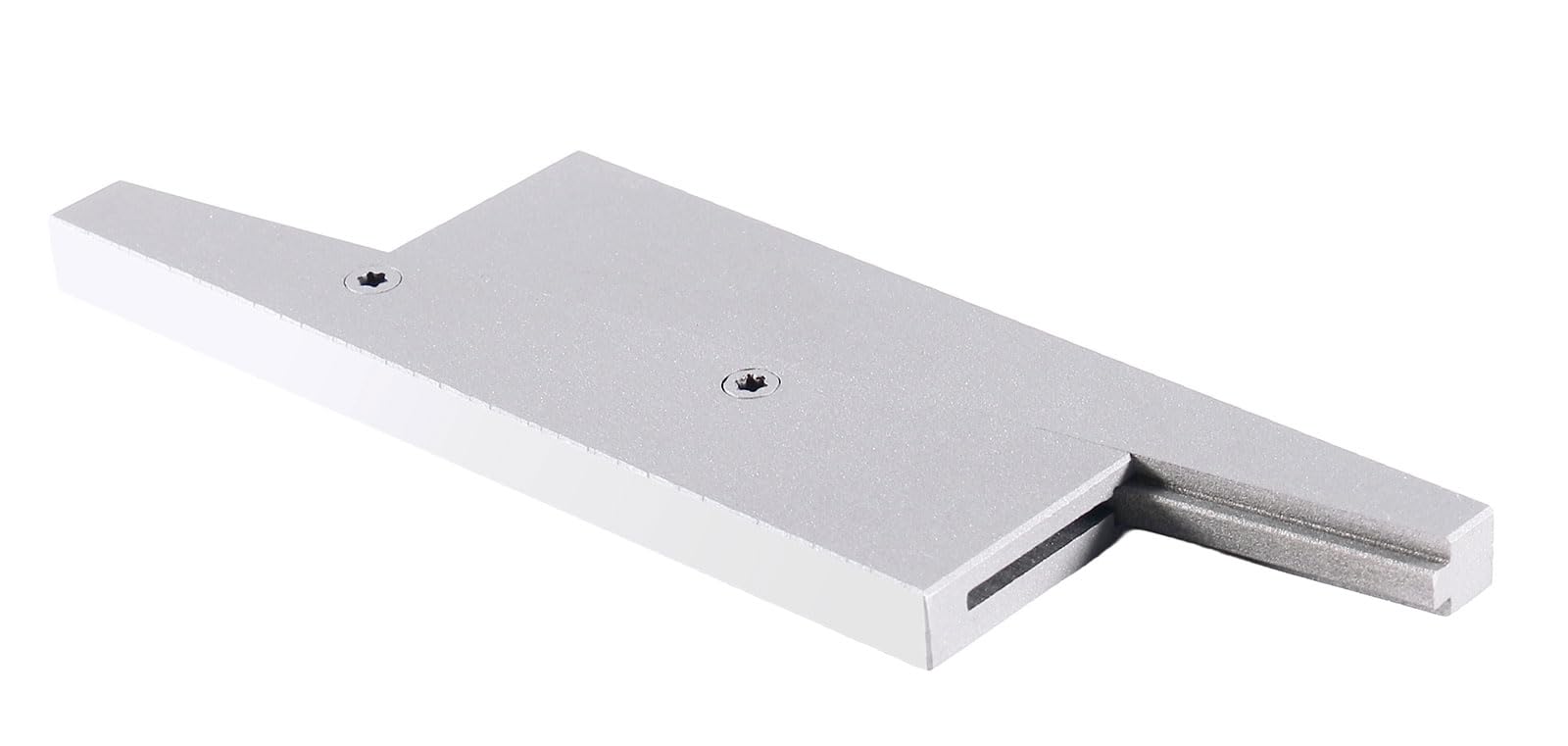

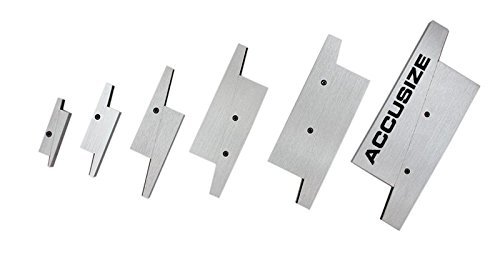

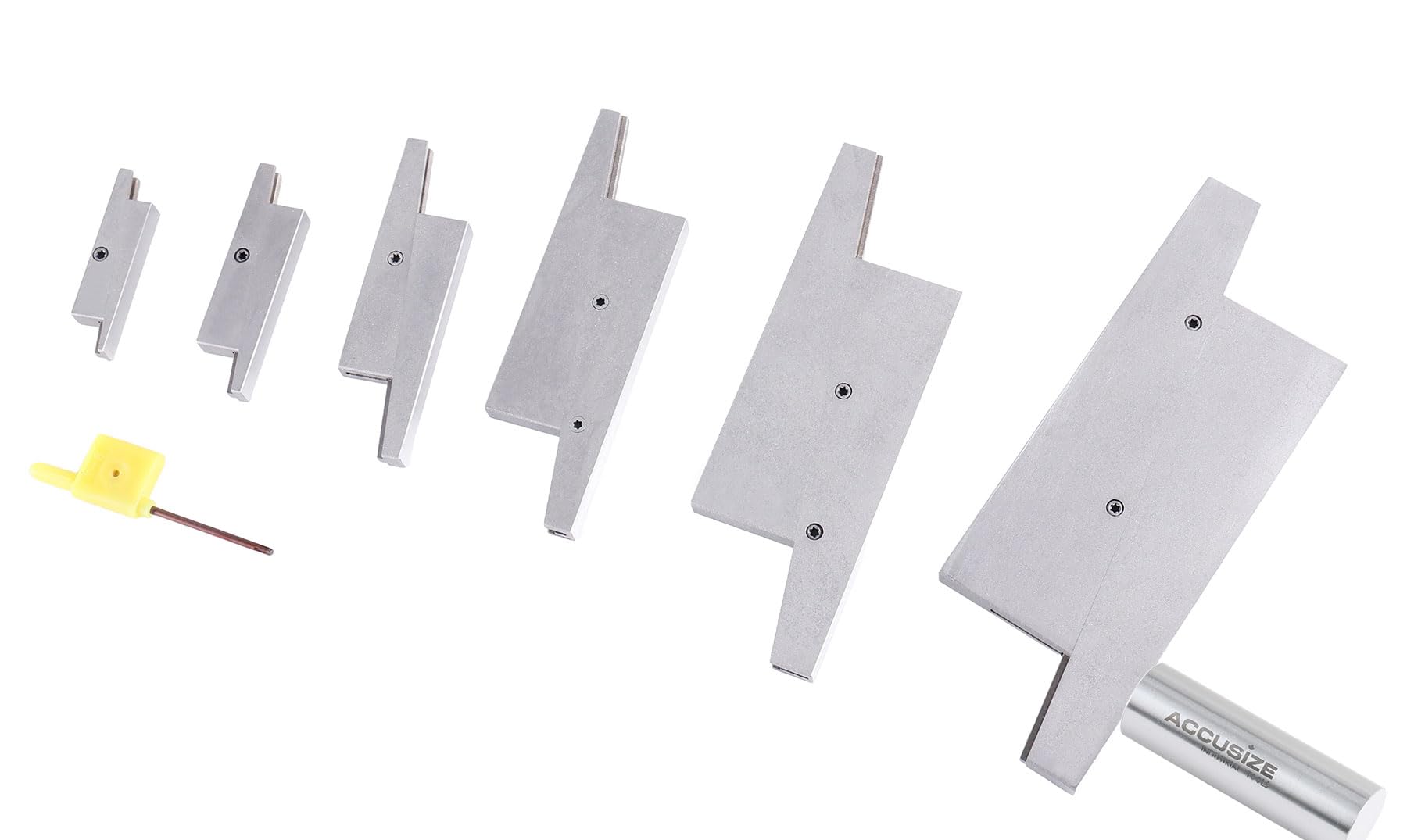

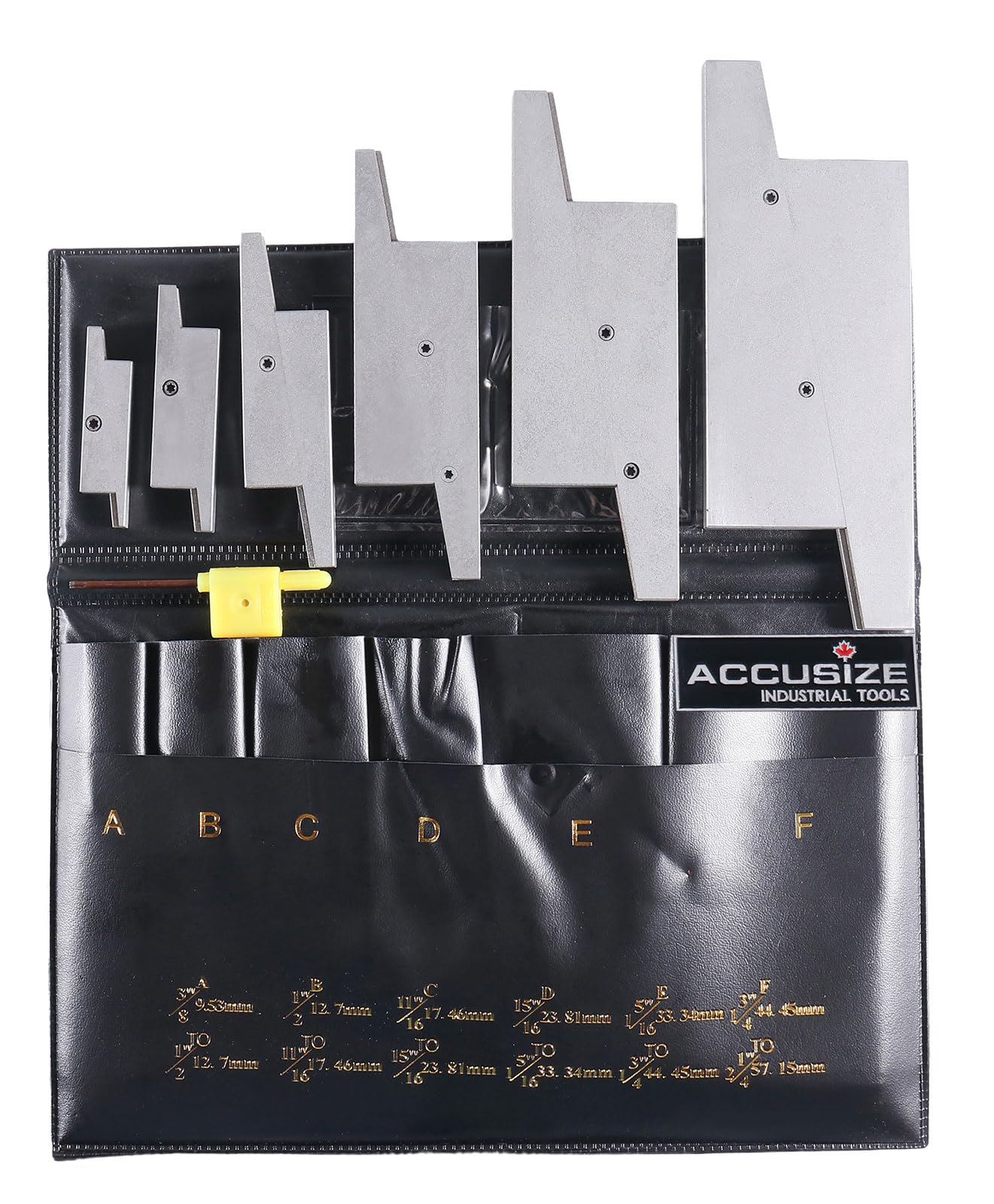

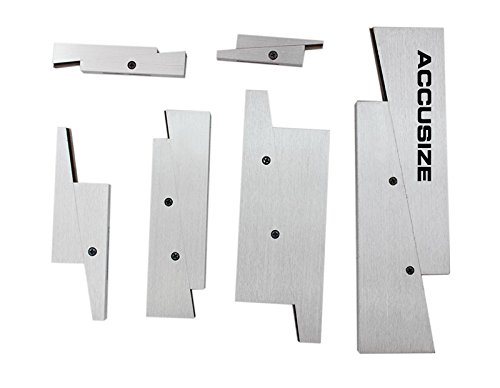

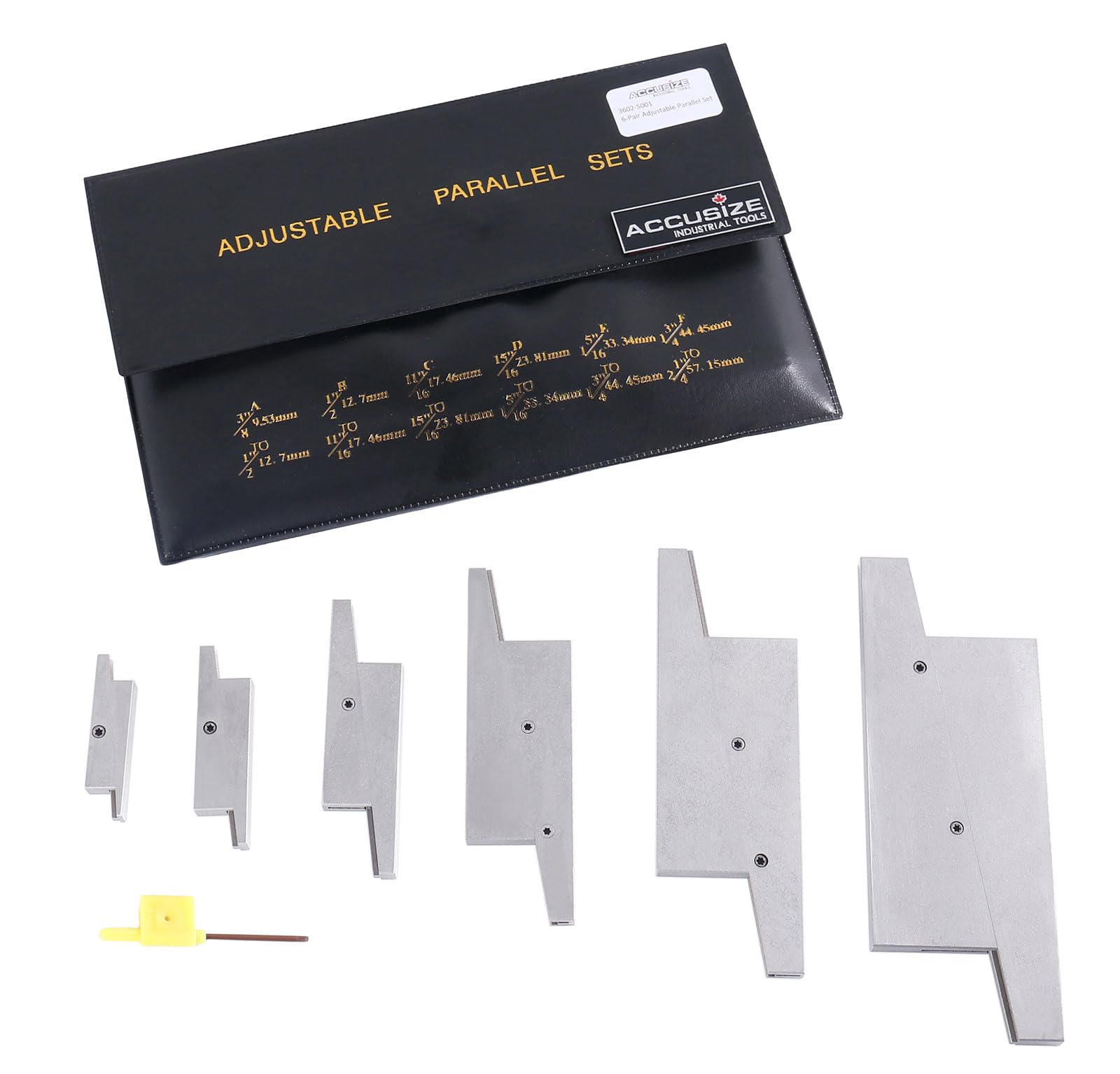

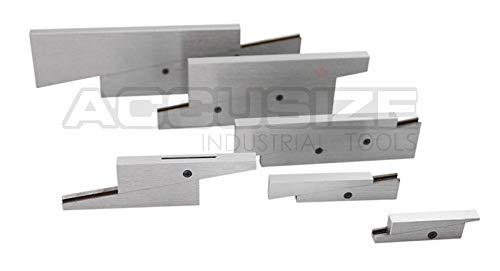

Accusize Industrial Tools 3602-5001 Adjustable Precision Parallel Set Accusize 3602-5001 Adjustable Precision Parallel Set Quickly adjustable and locked with screws for micrometer measurement.For layout, inspection, stop work, set-up and etc.Complete with fitted case. Usage The steel precision adjustable parallels can be used in many scenarios including layout, gauging, inspection, and machine setup. Here are the demonstrations of two of its major applications: slot measurement and Z height measurement of milling machines. Specification Length range: from 1-3/4" to 5" closed. Thickness: 7 mm + - 0.2 mm (9/32") Height range: . A: 3/8" to 1/2" (9.53mm to 12.7mm) B: 1/2" to 11/16" (12.7mm to 17.46mm) C: 11/16" to 15/16" (17.46mm to 23.81mm) D: 15/16" to 1-5/16" (23.81mm to 33.34mm) E: 1-5/16" to 1-3/4" (33.34mm to 44.45mm) F: 1-3/4" to 2-1/4" (44.45mm to 57.15mm) Measure slots Accusize 3602-5001 Steel Precision Adjustable Parallel Set can be used to measure slots. Choose a parallel that looks roughly able to do the job.Release the screws on the parallel, counter its top and bottom faces tightly to the faces of the slotTighten up the screws; take out the parallel from the slot.Measure the height of the parallel with a caliper or micrometer Measuring Z Height During Setup of a Milling Machine Step A Set up the machine, accessories, tools, workpieces, etc Step B Take an adjustable parallel that looks roughly able to do the job. Step C Loose the screws. Step D Release the adjustable parallel. Step E Put the parallel between the workpiece and the cutter; counter the contact faces tightly; tighten up the screws to fix the parallel. Step F Take out the fixed parallel; measure its height. Accusize Industrial Tools 0-0.1'' X 0.001'' Z Axis Zero Setting in Fitted Box... Accusize Industrial Tools Electronic Magnetic Z Axis Setter, 2'' Height, 0.00... Accusize Industrial Tools IP65 Electronic Digital Magnetic Height Presetter, ... Accusize Industrial Tools Z Axis Zero Setting 0-0.125'' by 0.0005'', 2'' Heig... Accusize Industrial Tools 0-0.1'' by 0.001'' with Magnetic Base, 4'' Height, ... Accusize Industrial Tools 6 Pair Adjustable Precision Parallel Set, 3602-5001 Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 51 3.9 out of 5 stars 24 3.6 out of 5 stars 21 3.9 out of 5 stars 51 4.0 out of 5 stars 7 3.7 out of 5 stars 71 Price $96.00$96.00 $186.28$186.28 — no data $112.11$112.11 $163.68$163.68 $86.24$86.24 Height 2 in 2 in 2 in 2 in 4 in 3/8" to 1/2", 1/2" to 11/16" 11/16" to 15/16",15/16" to 1-5/16", 1-5/16" to 1-3/4", and 1-3/4" to 2-1/4" Range 0-0.1 in no data 0-0.12" (2.5mm) 0-0.1 in 0-0.1 in 3/8" to 1/2", 1/2" to 11/16" 11/16" to 15/16",15/16" to 1-5/16", 1-5/16" to 1-3/4", and 1-3/4" to 2-1/4" Fluid & Particle Resistant no data no data IP65 no data no data no data Parallel no data no data no data no data no data ✓ Electronic no data ✓ ✓ no data no data no data
